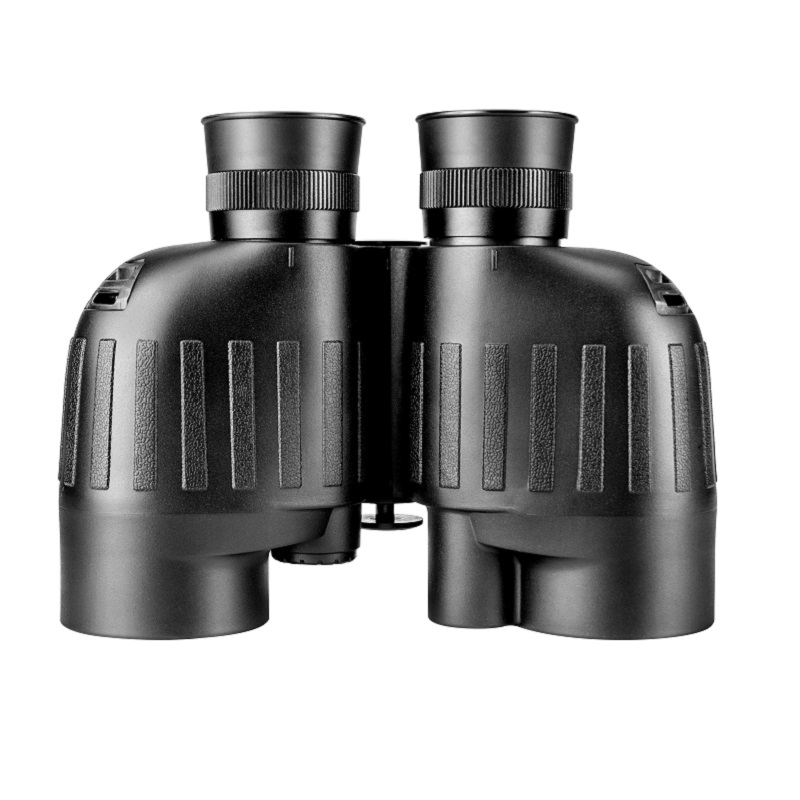

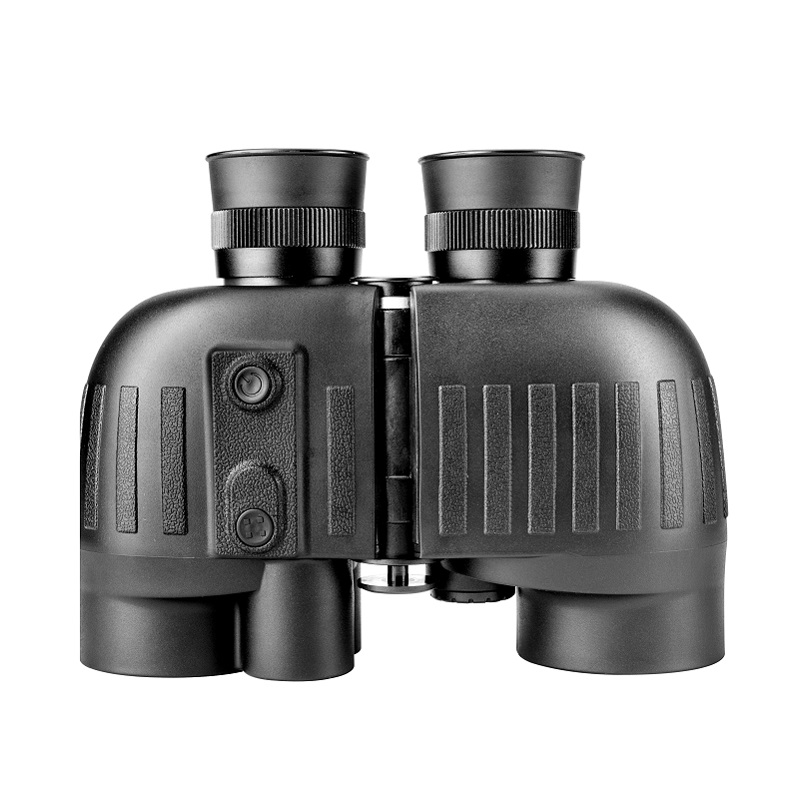

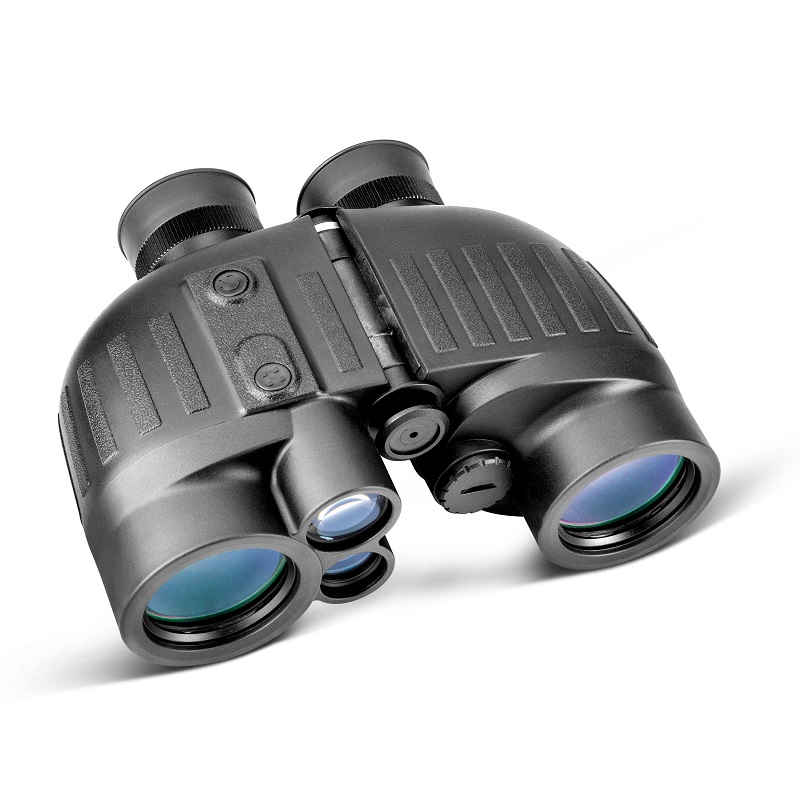

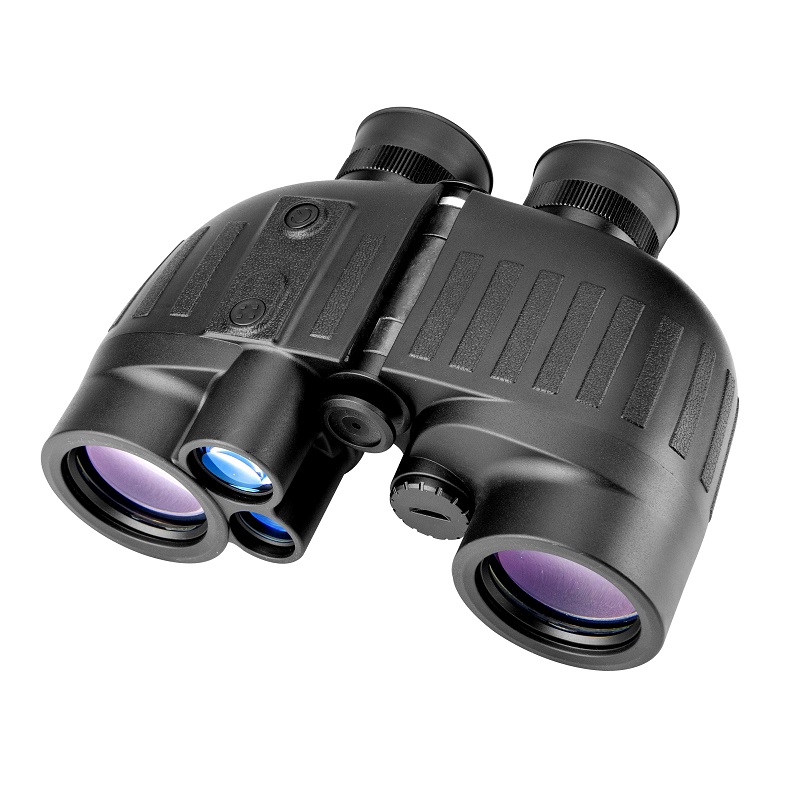

LRB10 Laser Range Finder Binocular

SKU: LRB10

There are 2 options for choice - 1000m and 1500m.

This product is based on a 905nm pulsed laser, a laser semiconductor transmitter and receiver Paul binoculars developed by TOF principle. It can obtain high-transmission stereo images while achieving multi-functions such as long-distance distance measurement, height measurement and angle measurement, and it build-in electronic compass that could measure real-time azimuth. The product has high accuracy. It has many functions, is portable and easy to operate. It can be used for measurement in a variety of complex environments.

Send Email

LRB10 Laser Range Finder Binocular details

Specs Sheet Download: LRB10 Laser Rangefinder Binocular (dawnoptics.com)

Features:

* The product adopts the design of the classic nautical Porro telescope, and the lens adopts high-definition coating, which can clearly observe the target from a long distance.

* Using a High transparency LCD display , does not block any observation field of view;

* Data can be obtained quickly within 1 second, regardless of distance;

* The product adds an electronic compass, which can obtain the real-time position of the observation target.

Category	model	LRB10
Performance	Range distance	1m-1000m
	Measurement error	±1m(1-600m)/±2m(600-1000m)/ ±3m(1000-3000m)
	Units of measurement	M/yard
	Screen	High transparency LCD display
	Angle measurement range	±85°
Features	Distance measurement	Yes
	Height measurement	Yes
	Angle measurement,	Yes
	Meter/yard switch	Yes
	Electronic compass	Yes
	Measurement method	once
	Automatic shutdown time	30S after no operation
Optical parameters	Optical magnification	8X
	Objective lens diameter	40mm
	Exit pupil distance	17mm
	Exit pupil diameter	4.65mm
	Nearest focal length	2M
	Field of view	8°
	Diopter	±5D
	Eyepiece diameter	19.2mm
Laser parameters	Laser band	905nm
Laser parameters	Security Level	Class 1
	Operating Voltage	3.7V
	Operating temperature	-20℃/+40℃
	Interface	No
Appearance parameters	Shell material	PC+glass fiber
	Size(mm)	180X148X68
	Weight (g)	955
