DN20003
Black
OEM/ODM
12 months
Features:
* Light-weight and delicate
* High strength with metal fuselage
* Three-light separation and optical design, digital image acquisition can be realized without affecting visual observation
* Adjustable interpupillary distance

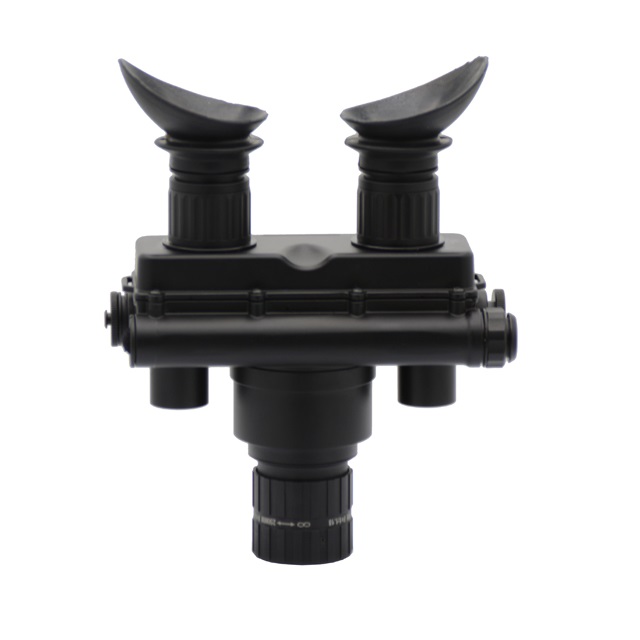

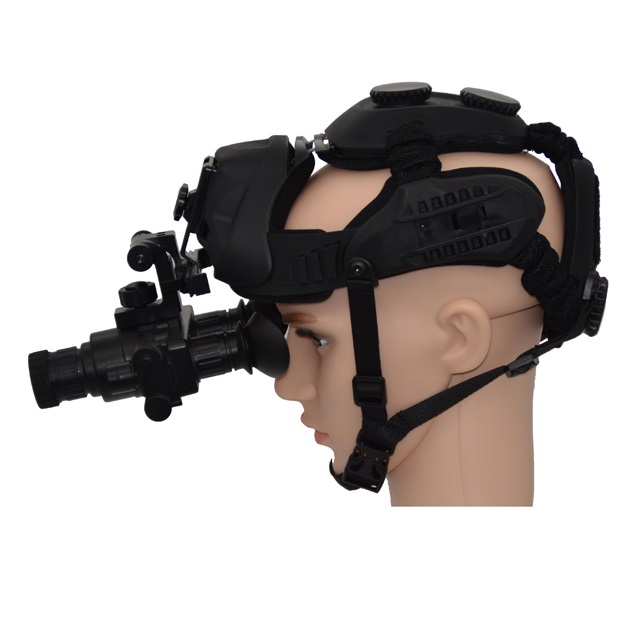

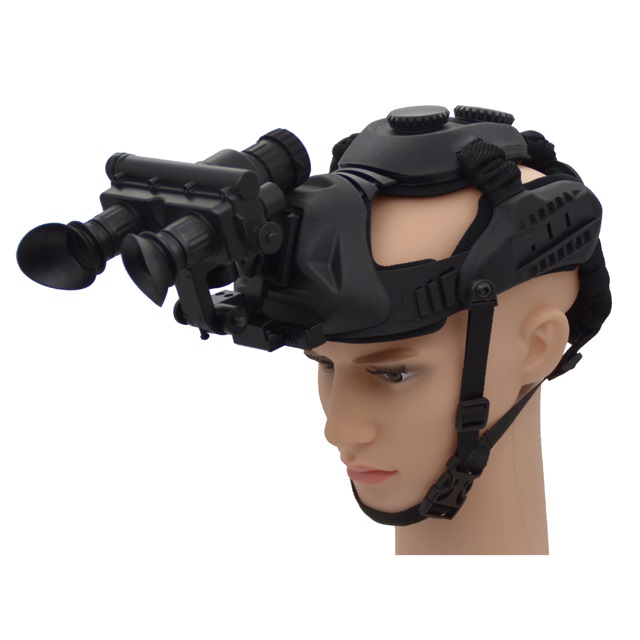

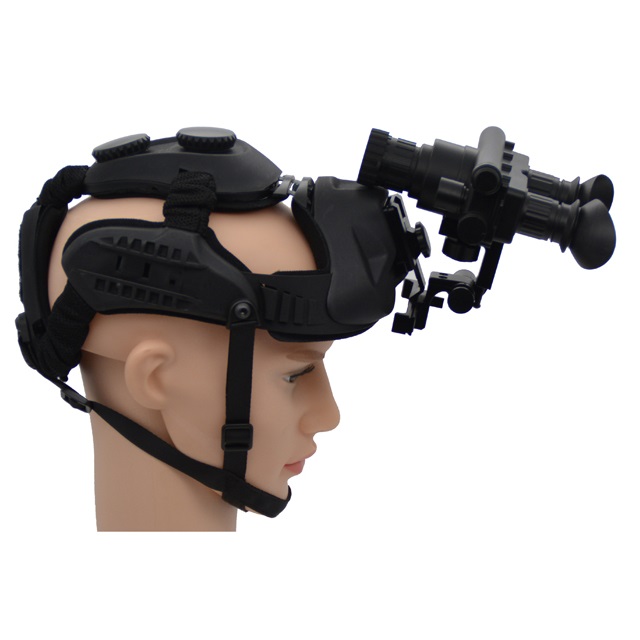

Night Vision Head Mounted Goggle DN20003 details
This is a single tube, dual eye” one of the most popular night vision goggles in industry. Fully adjustable, padded headgear allows the device to be flipped-up or quickly detached from the mask. Optional 3X or 5X magnification multicoated lens will convert this device into a high performance long range binoculars. They’re lightweight, fully submersible, rugged, precisely built and easy to use. This model is able to accommodate both AA and CR123 batteries without any accessories.
Technical Specs:
| GEN+ | Gen2+ | Gen3 |
| Magnification | 1x | 1x |
| Resolution | 45-57 | 57-64 |
| Photocathode | S25 | GaAs |
| S/N （dB） | 15-21 | 21-24 |
| Luminous sensitivity (μA/lm) | 450-500 | 1500-1800 |
| FOV (deg) | 40 | 40 |
| View distance (m) | 180-220 | 250-280 |
| Diopter (deg) | ±5 | ±5 |
| Optical System | F1.2, 25.8mm | F1.2, 25.8mm |
| Range of focus (m) | 0.25--∞ | 0.25--∞ |
| Power supply (v) | 2.0-4.2V | 2.0-4.2V |
| Battery type (v) | CR123A (1) or AA (2) | CR123A (1) or AA (2) |
| Battery life (hrs) | 80(w/o IR) / 40(w IR) | 80(w/o IR) / 40(w IR) |
| Operating temperature(°C) | -40/+60 | -40/+60 |
| Relative humility | 5%- 98% | 5%- 98% |
| Waterproof | IP67 | IP67 |
| Dimensions (mm) | 130x130x69 | 130x130x69 |
| Weight (g) | 393 | 393 |
This model “single tube, dual eye” one of the most popular Gen2+/ gen3 night vision goggles in industry. Fully adjustable, p
