JR100 Coin Operated Binocular

SKU: JR100T / JR100B

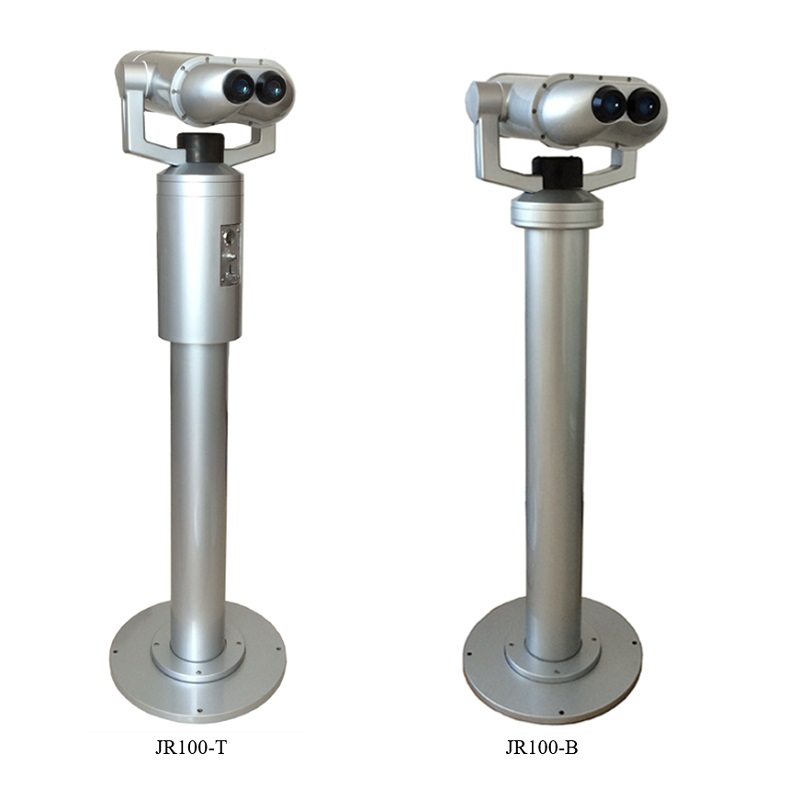

JR100-T coin binocular is designed especially for scenic spot landscape using to satisfy the tourists to view far away. JR100-T coin binocular with the wonderful performance such as easy operation、sharp image、steady electrical specification, reliable structure property and new appearance could help you to get more profit return. JR100-B Non-coin binocular is suitable for free service

Note: Two models for choice, coin-operated system and non-coin-operated.

Send Email

JR100 Coin Operated Binocular details

User Manual Downlaod: JR100 User Manual (dawnoptics.com)

Items	Specifications
Magnification	25X
Field of View	3°
Exit Pupil	Φ4mm
Eye Relief	21.5mm
Entrance Pupil	100mm
Twilight Factor	50
Relative Brightness	16
Resolution	≤2.4″
Visibility Fixation	-0.5±0.25
Eye Distance	63mm
Prism Type	Composite Prism
Prism Material	K9
Lens Number (binocular)	10 sets/ 14pieces
Dimensions	1540 mm×603 mm×300 mm
Weight	55kg(non-coin operated model: 50kg)
Environmental Adaptive Performance
Items	Performance
Waterproof	Meet the Standard of Q/KYD01-2010
Temperature Adaptivity	-20℃~+70℃
Internal Moisture Preventing Disposal	Filled with Nitrogen Gas
Electrical Device Specifications (only for coin operated model)
Items	Specifications
Power Source	3pcs 18650 Lithium Battery
Coin Chute Protection Level	IP56 (Battery Excluded)
Shutter’s Service Life (number of cycles)	>105
Shutter Duration	10~3600s/coin,10s/change
Coin Diameter Requirement	18mm~29mm
Coin Thickness Requirement	1.2mm~3.0mm
Power Save Mode	Automatically Enter Hibernation in 1min’s idle
Operating Temperature	-20℃~+50℃
