Night Vision Monocular Head Mounted DN10001

SKU#: DN10001

Color: Black

Service: OEM/ODM

Warranty: 12 months


Features:

High Sensitivity, Ultra Fast, Broadband Detection

* Light-weight and Delicated, high strength with metal body

* Great optical system ,clear imaging, high brightness, uniform brightness

* IPX65 Waterproof

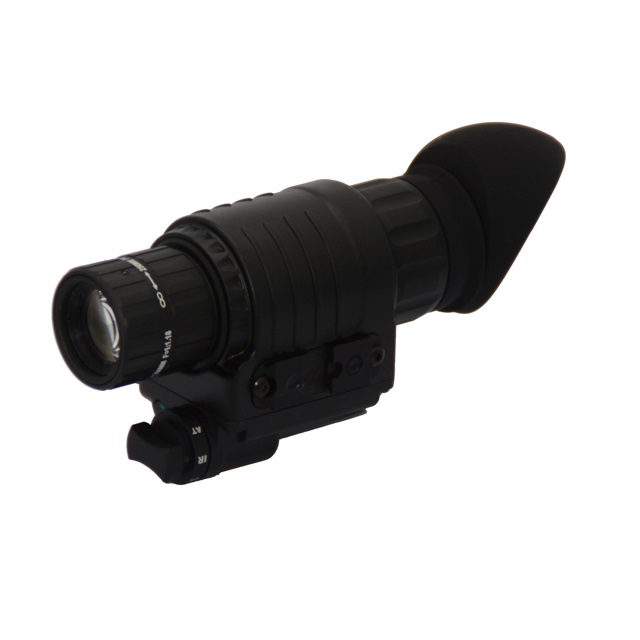

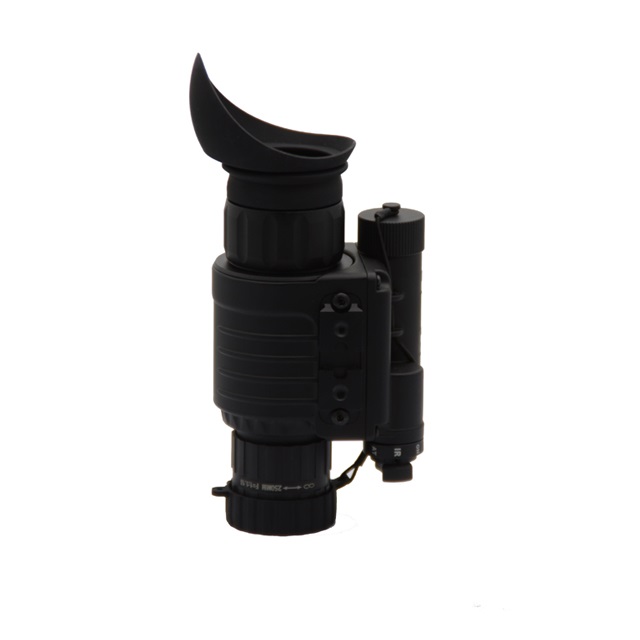

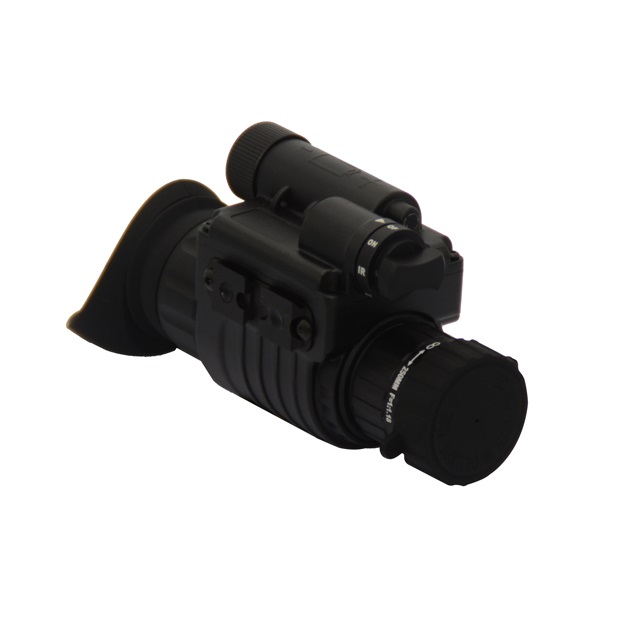

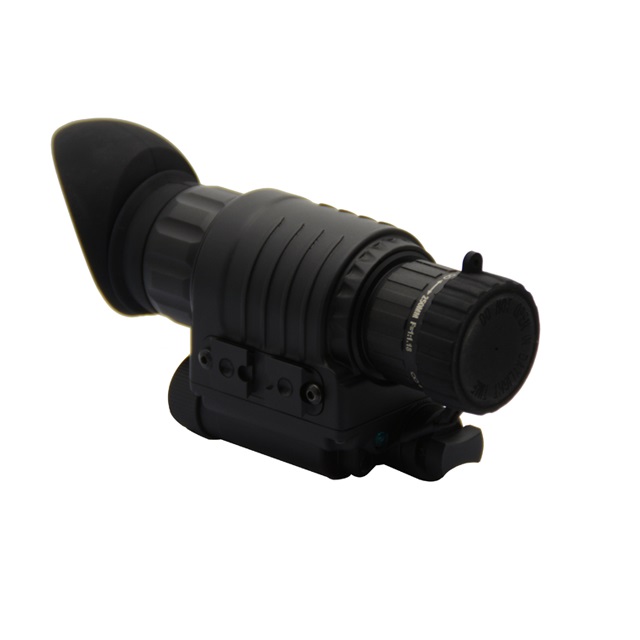

Night Vision Monocular Head Mounted DN10001 details

DN10001 is a new item based on the latest photoelectric technology. It uses high-performance second-generation/third generation image intensifier. It has the characteristics of excellent performance, small size, light weight, clear image, simple operation, high performance-price ratio, and the magnification can be changed by replacing objective lens (or connecting multiplier lens). The product can be connected with digital cameras, cameras and video cameras. It can be used with gun sight card or alone. The night vision instrument has built-in infrared auxiliary light source and automatic strong light protection system. This product has strong practicability and can be applied to military observation, frontier and coastal defense reconnaissance, public security surveillance, evidence collection, customs smuggling, etc. in the night without lighting. It is an ideal equipment for public security departments, armed police forces, special police forces, and guard patrols.


Technical Specs:


ITT

Gen2+

Magnification

1X

Resolution(LP/MM)

45-57

Photo cathode type

S25

S/N(dB)

15-21

Luminous sensitivity(μa-lm)

450-500

MTTF(hrs)

10000

FOV(deg)

42+/-3

Detection distance(m)

180-220

Graduation cursor

Internal (optional)

Diopter range

+5/-5

Lens system

F1.2, 25mm

Coating

Multilayer broadband coating

Range of focus

0.25--∞

Auto anti strong light

High Sensitivity, Ultra Fast, Broadband Detection

Rollover detection

Solid non-contact automatic detection

Dimensions (mm) (without eye mask)

115x69x54

Product material

Aviation Aluminum Alloy

Weight (g)

295

Power supply (volt)

2.6-4.2V

Battery type (V)

CR123A(1)

Battery life (hours)

80(W/O IR) 40(W/IR)

Operating temperature (C

-40/+50

Relative humidity

5%-98%

Environment rating

IP65(IP67 Optional)


DT-NH81X is a new product based on the latest optoelectronics technology. It uses high-performance second-generation/third ge
